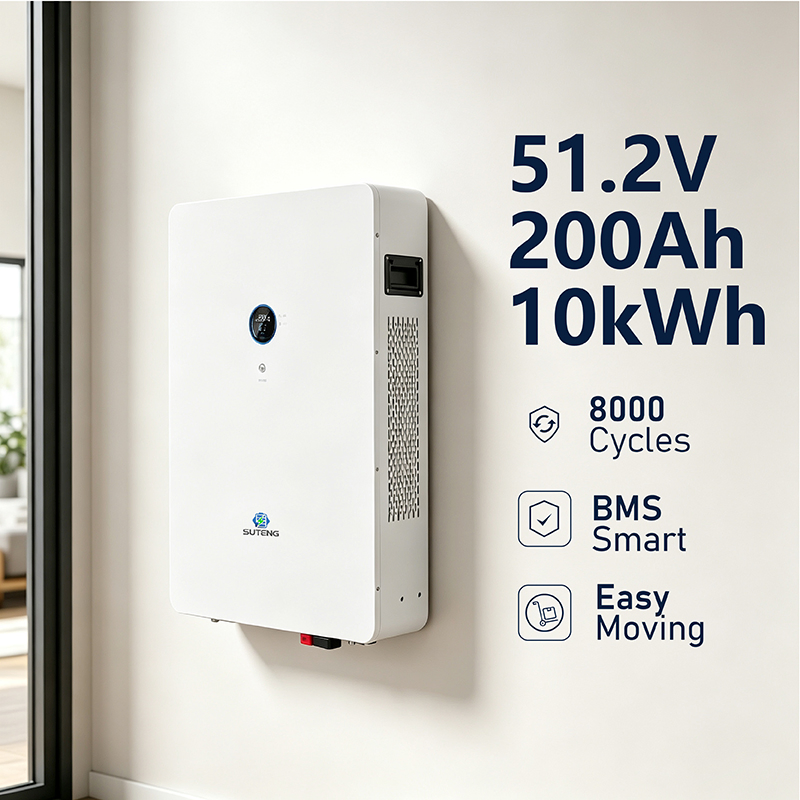

| Modelo: WKC | F01-51.2100 | F01-51.2200-B |
|---|---|---|
| Nominal Voltage (V) | 100 | |

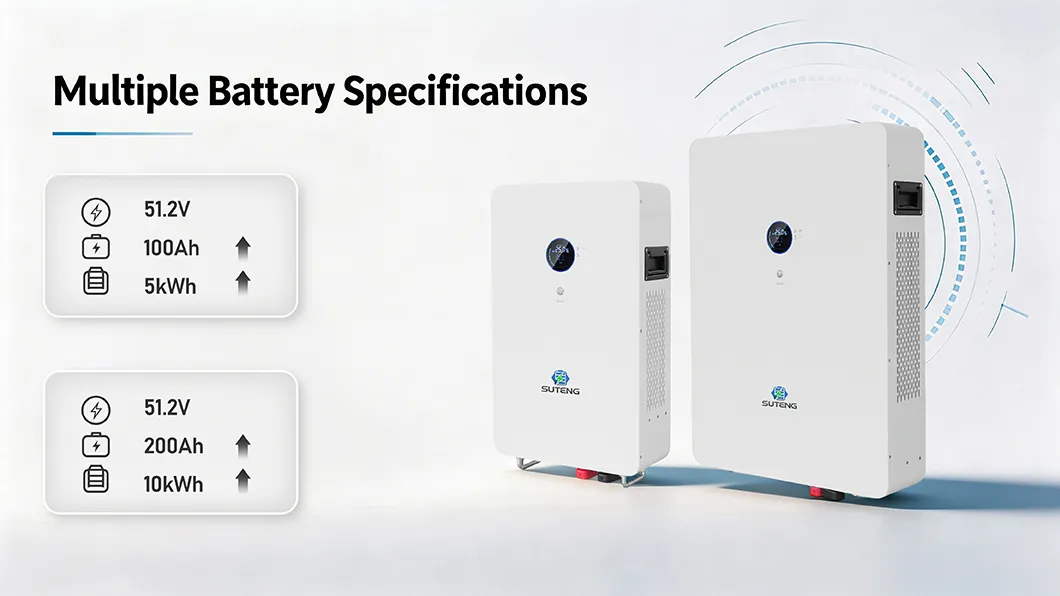

| Nominal Capacity (Ah) | 100 | 200 |
| Nominal Energy (kWh) | 5.12 | 10.24 |
| Operating Voltage Range (V) | 44.8-58.4 | |
| Recommended Charging Voltage (V) | 56.8 | |
| Recommended Discharge Cut-off Voltage (V) | 44.8 | |
| Maximum Charging Current (A) | 50 | 100 |
| Maximum Discharging Current (A) | 50 | 100 |
| Cycle Life | 6000 cycles (0.5C, 90% DOD, 25°C) | |

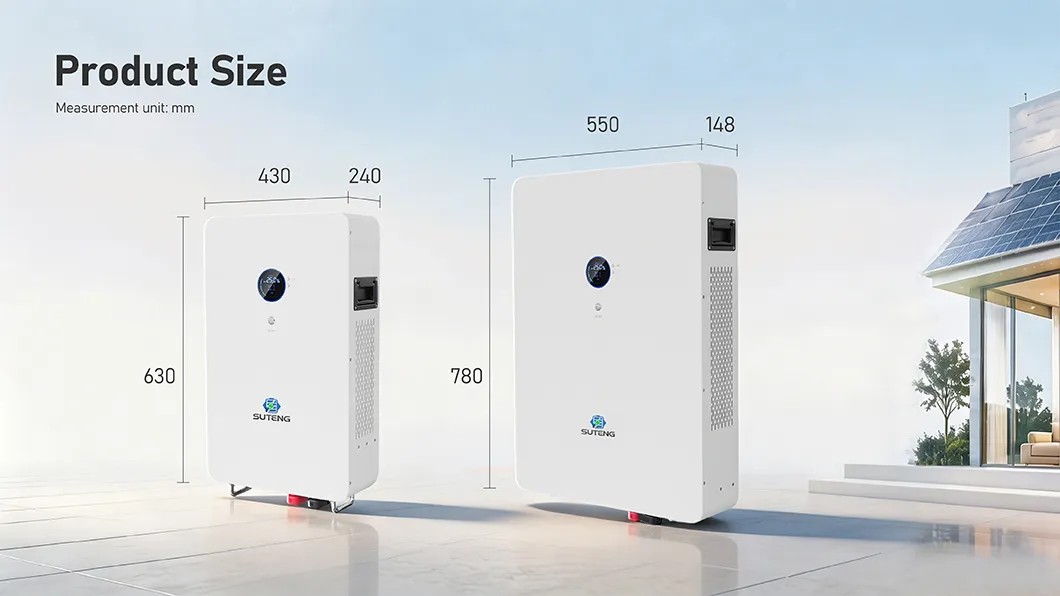

| Chassis Dimensions (W*D*H) mm | 380*148*615 | 550*148*780 |
| Weight (kg) | 43.2 | 81.5 |
| Communication Method | CAN/RS485/Bluetooth/WIFI | |
| Number of Parallel Units | 20 units | |
| Permissible Humidity Range (%RH) | 15~85 | |
| Storage Ambient Temperature (°C) | -20~60(Recommended: 10~35) | |
| Charging Ambient Temperature (°C) | 0~50(Recommended: 10~35) | |
| Discharging Ambient Temperature (°C) | -10~60(Recommended: 10~35) | |
| Altitude (m) | <3000 | |
| Protection Level | IP20 | |
| Cooling Method | Natural air cooling | |
| Condition | Indoor | |
| Protection method | Overvoltage, undervoltage, differential voltage, overtemperature, capacity, short circuit, communication failure, etc | |
| Certificate | UN38.3, MSDS, CE | |
| Note: The above data are for reference. In case of any changes, no further notice will be given. For special customization requirements, please contact the equipment manufacturer | ||
